Brand Name: TEKAIBIN
Model Number: HT09
Place of Origin: Zhejiang, China (Mainland)
Type: Floor Heating Parts, heating thermostat
Floor Heating Part Type: Floor Heating Thermostats
Usage: Household
Voltage: 230VAC ± 10%,50/60HZ(24VAC Optional)
Current load: 3A/10A/16A
Internal sensor setting range: 5-35℃(programmable)(factory setting:25℃)
Internal sensor measurement range: 0-40℃
External sensor measurement range: 0-90℃(factory setting:50℃)
Floor sensor: Length=3M NTC B=3380 10K @25degreesCelsius(Optional)
Housing material: Anti-flammable
OEM: yes
HT09 Heating Thermostat with weekly programming adopts the latest single-chip computer control technology.
It has the high reliability and powerful anti-jamming.
The application of electric heating of the electric heating equipment and Water heating system of electric heating actuator control.
The clock continues when power fail and it won’t affect the period of time settings.
The selection for manual control or automatic periods of time control.
Setting daily 3 periods of time and the setting temperature.
Kinds of periods of time modes. 5+2 / 6+1 / 7days
Easy operation and utility, nice looking.
Mini size junction box and suitable for the entire world.
Flame retardant and safe and easy-cleaning.
keypad lock function to prevent the misuse children
Extra sensor: 3 meters (Optional)
Technical Data:
Name | Mechanical floor heating thermostat |
Model | HT09 |
Brand | TKBHOME & OEM |
Samples | Available |
Warranty | 1 year |
Certification | CE |
Voltage | 230VAC ± 10%,50/60HZ(24VAC Optional) |
Current load | 3A/10A/16A |
Internal sensor setting range | 5°C~35°C (programmable)(factory setting:25℃) |
Internal sensor measurement range | 0-40℃ |
External sensor measurement range | 0-90℃(factory setting:50℃) |
Floor sensor | Length=3M NTC B=3380 10K @25degreesCelsius(Optional) |
Housing material | Anti-flammable |

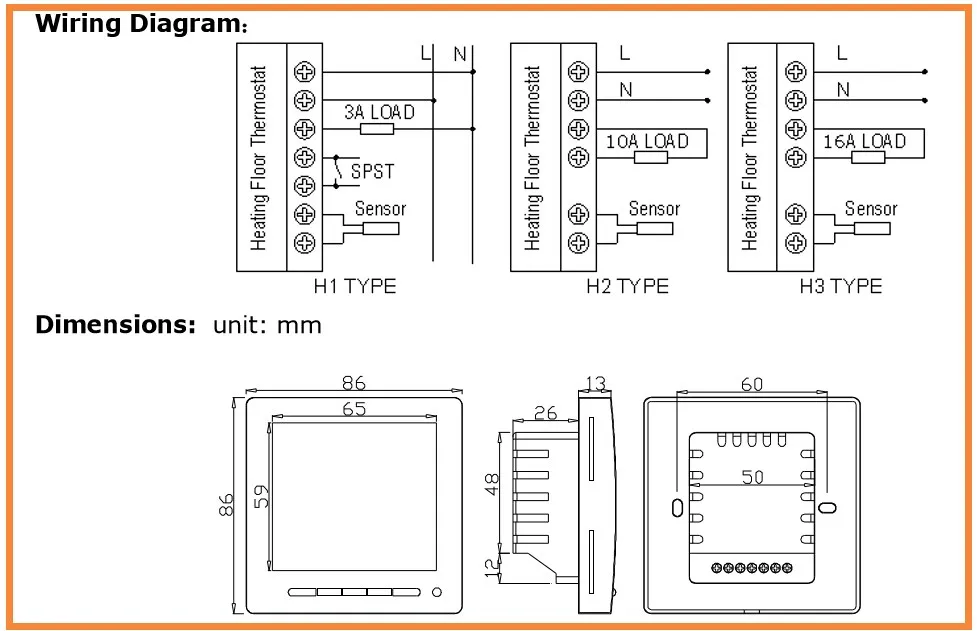

Selection table:
Model No. | Current | Application |
HT09H1 | 3A | Built-in sensor, weekly programme |
HT09H2 | 10A | Built-in or floor sensor, floor limit sensor weekly programme |
HT09H3 | 16A | Built-in&floor sensor, floor limit sensor weekly programme |
YOUDO takes over a decade to offer you good quality products and best service !
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,paypal,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for productionFor the small capacity, it us
Q 3.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 4.We want to know month capacity.
A. It depends on which model.For example for thermostat small capacity , month capacity can reach near 10000pcs and big capacity near 20000pcs.
Q 5.Where is your market?
A. Our products are popular in Russia, Germany, UK, Poland, NewZealand, Israel, Croatia, Slovakia, Czech, Iraq, Cyprus, Turkey , Singapore,Hongkong so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q6. what kind of certificate you have ?
A. Our company already achieve the “ISO9001:2008” quality management system.We acquired the “CE certification” for all products.
Q7. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q8. How about the MOQ?
A. Usually More than one carton if you have some special requirements Welcome to contact with us.
Q9. What is your website?
A. You can login our company website: www.tekaibin.com or www.youdo.cc
Q10. What is the different between YOUDO and TEKAIBIN?
A. YOUDO is my company name and the TEKAIBIN is brand name of our products.
Q11. What is the meaning of THREE (3) YEAR WARRANTY?
A. This product is warranted against material defects and workmanship in normal use for a period of three years,from the date of original purchase from authorized dealers. during this period,will repair or replace the product with a new or equivalent quality at TEKAIBIN option, without charge, any product proven defective in normal use. Warranty does not cover transportation costs. Nor does it cover a product subjected to misuse or accidental damage. This warranty does not cover the cost of installation, removal or reinstallation. This limited warranty is in lieu of all other warranties, obligations or liabilities expressed or implied by the company. In no event shall TEKAIBIN be liable for consequential or incidental damages resulting from installation of this product. This warranty does not affect your statutory rights. The defective product and the original sale receipt must be returned to the dealer or shipped pre-paid , insured and address
